Anechoic Chamber

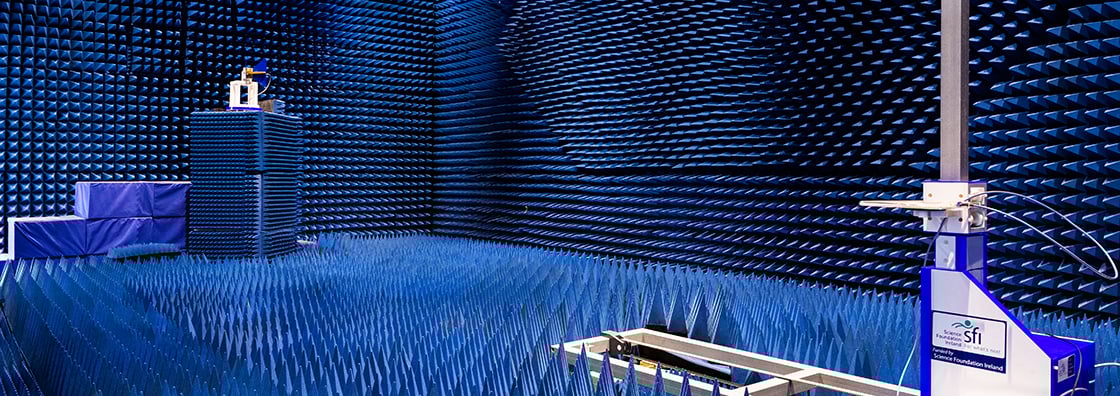

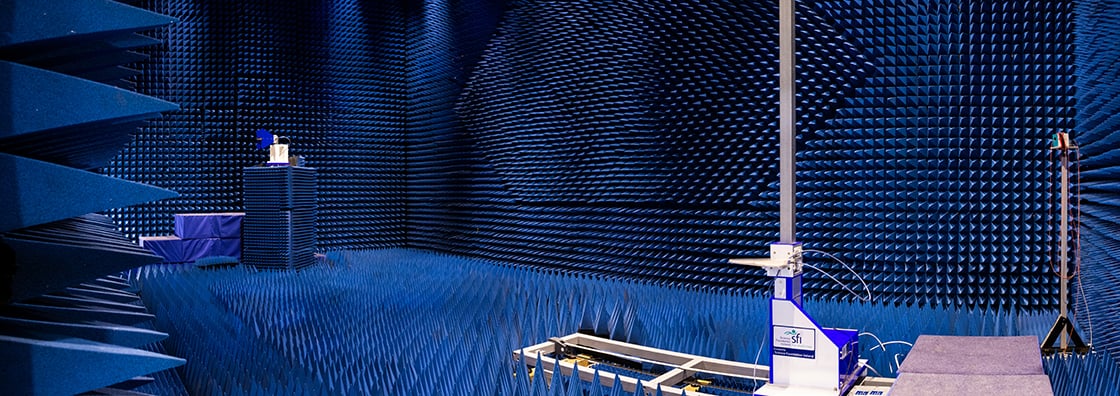

Purpose of equipment: The Anechoic Chamber will facilitate experiments and measurements for antennas, EMC, mmWave circuits and propagation characterisation, and anything requiring RF isolation. It’s physical dimensions are 10x6x6 metres, making it the largest chamber in Ireland
Technical information/equipment spec: The Anechoic chamber is a shielded and anechoic chamber, provided by Global EMC, that is certified from 800 MHz to 86 GHz, optimised for frequencies in the range 1.5 GHz to 40 GHz.
Financial support for the Anechoic Chamber was provided to Maynooth University, Department of Electronic Engineering by Science Foundation Ireland (SFI) under Grant Number 15/RI/3225.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
SMW200A Vector Signal Generator
Purpose of equipment: SMW200A is a Rohde & Schwarz Vector Signal Generator with up to 40GHz . The equipment is used in conjunction with the Anechoic Chamber to make measurements for Antennas, EMC test and measurement and other areas of Research and Development activities of the Dept. of Electronic Engineering, Maynooth University.
Technical information/equipment spec: SMW200A Vector Signal Generator Frequency Option for RF path A B103/B106/B112/B120/B131/B140/B140N and baseband main module B13/B13T/B13XT B22, B90,B9.
Financial support for the SMW200A Vector Signal Generator was provided to Maynooth University, Department of Electronic Engineering by Science Foundation Ireland (SFI) under Grant Number 15/RI/3225.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
FSW43 Signal and Spectrum Analyser
Purpose of equipment: FSW43 is a Rohde & Schwarz signal and spectrum analyser . The equipment is used in conjunction with the Anechoic Chamber to make measurements for Antennas, EMC test and measurement and other areas of Research and Development activities of the Dept. of Electronic Engineering, Maynooth University.
Technical information/equipment spec: FSW43 Signal and Spectrum Analyser 2Hz to 43Ghz , -153dBm to +30dBm resolution bandwidth 1Hz to10Mhz .FSW-B24,FSW-B21,FSW-B1200,FSW-K544.
Financial support for the FSW43 Signal and Spectrum Analyser was provided to Maynooth University, Department of Electronic Engineering by Science Foundation Ireland (SFI) under Grant Number 15/RI/3225.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
ZVA40 Vector Network Analyser
Purpose of the equipment: ZVA40 is a Rohde & Schwarz Vector Network Analyser 4 ports, 4generators 10Mhz to 40Ghz . The equipment is used in conjunction with the Anechoic Chamber to make measurements for Antennas, EMC test and measurement and other areas of Research and Development activities of the Dept. of Electronic Engineering, Maynooth University.
Technical information/equipment spec: ZVA40 Vector Network Analyser 4 ports 4 generators 10Mhz to 40GHz 2.92mm connectors Optios include: ZVA40-B21,ZVA40-B23,ZVA40-B32,ZVA40-B34,ZVAB-K2, ZVA40-B16,ZVA-K8,ZVAB-B18.
Financial support for the ZVA40 Vector Network Analyser was provided to Maynooth University, Department of Electronic Engineering by Science Foundation Ireland (SFI) under Grant Number 16/RI/3399.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
Maturo-controller
Purpose of the equipment: The Maturo Controller is used to control the Antenna mas and Turntable in the Anechoic Chamber. The equipment is used in conjunction with the Anechoic Chamber to make measurements for Antennas, EMC test and measurement and other areas of Research and Development activities of the Dept. of Electronic Engineering , Maynooth University.
Technical information/equipment spec: The Maturo Controller is used to control the Antenna mast and turntable in the anechoic chamber. It can be used to control Turntable, antenna mast and 2 additional equipment as required.
Financial support for the Maturo-controller was provided to Maynooth University, Department of Electronic Engineering by Science Foundation Ireland (SFI) under Grant Number 15/RI/3225.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
AntennaMast
Purpose of the equipment: The Antenna mast is used to control the position of the antenna during testing. It can move in the x and Y plane. The equipment is used in conjunction with the Anechoic Chamber to make measurements for Antennas, EMC test and measurement and other areas of Research and Development activities of the Dept. of Electronic Engineering, Maynooth University.
Technical information/equipment spec: The Antenna mast is used with the R&S Equipment to perform measurements.
Financial support for the AntennaMast was provided to Maynooth University, Department of Electronic Engineering by Science Foundation Ireland (SFI) under Grant Number 15/RI/3225.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
Turntable
Purpose of the equipment: The Turntable is used to rotate the device under test.The equipment is used in conjunction with the Anechoic Chamber to make measurements for Antennas, EMC test and measurement and other areas of Research and Development activities of the Dept. of Electronic Engineering, Maynooth University.
Technical information/equipment spec: The Turntable is used with the antenna mast and the R&S Equipment to perform measurements.
Financial support for the Turntable was provided to Maynooth University, Electronic Engineering Department by Science Foundation Ireland (SFI) under Grant Number 15/RI/3225.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
Terahertz Frequency VNA Measurement Facility
Purpose of the equipment: VNA based facility to measure phase and amplitude between 500 and 110 GHz using frequency multiplier units. Precise optical component testing possible with XYZ scanning facility.
Technical information/equipment spec: High frequency multiplier Heads used with Rhode and Schwarz ZVA24 and scanning translation stages.
Financial support for the Terahertz frequency VNA measurement facility was provided to Maynooth University, Experimental Physics Department by Science Foundation Ireland (SFI) under grant number 16/RI/3702.
Key Responsible Investigator: Ronan Farrell
Location: Radiospace Building, Maynooth University
